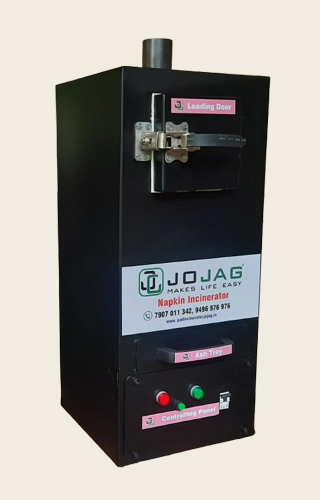

Napkin Incinerator 25 pad/cycle
Model No: JN 203A
Capacity/Cycle: 25-30 pad
Capacity/day: 120 pad
PRICE : Rs 22,450
- 12 Month Warranty
- Free Product Training
- Free Vertual Assistant
- Post-warranty repair
Product Detail :
| Product | Pad Incinerator |
| Model no | JN 203A |
| Purpose | Schools / Institution |
| Mode | Automatic |
| Capacity/day | 120 pad / day |
| Capacity/cycle | 25-30 pad / cycle |
| Operation | Auto Cut off - Timer |
| Time | 10 minute / cycle |
| Supply | 230v, 50Hz |
| Power | 2000w |
| Exhaust | GI Flexible Pipe |
| Type | Wall mount |
| Dimension ( in mm ) | L250 x B250 x H520 |
| Thermal Insulation | Ceramic 25mm |
| Feature | Eco friendly |

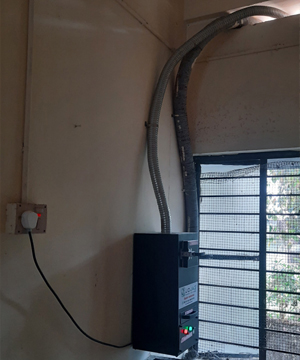

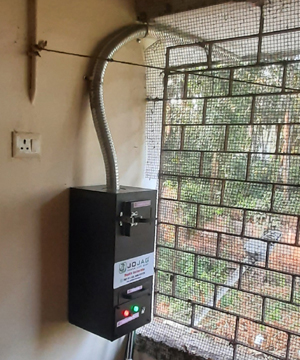

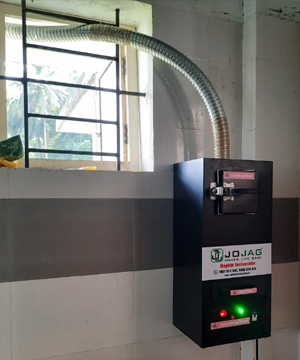

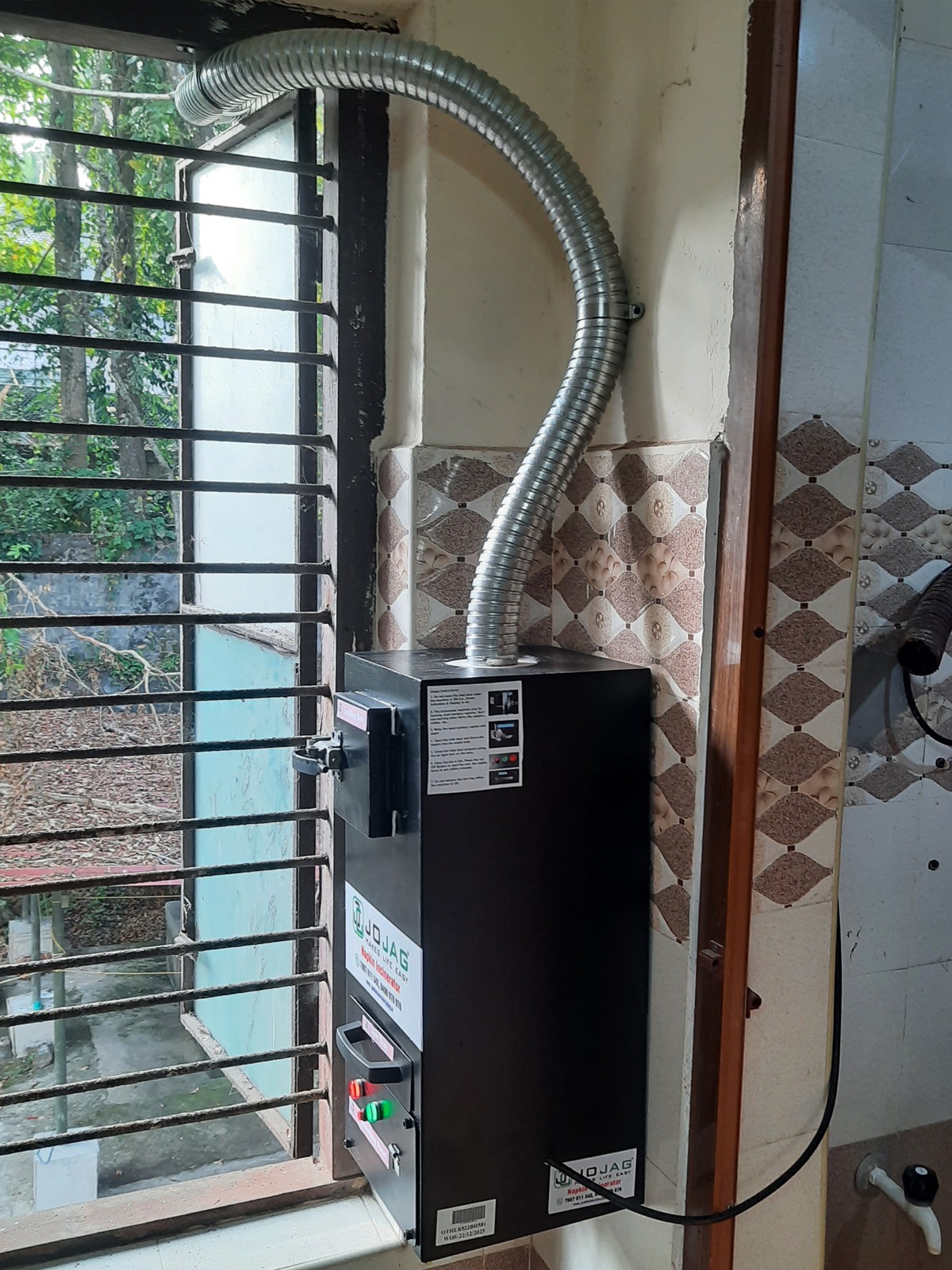

Installed @ Hostel Toilet Varanda:
OUR PRODUCTS :
Napkin Incinerator models
Detailed Specification
Operation Mode: Automatic
The automatic shut-off system turns off the machine when the burning process is complete.
Capacity: 25-30 pad/cycle
The number of napkins it can process at once or within a given cycle.
Heater Power: 2000 Watt
How much energy is used per cycle, the efficiency of the machine depends on the wattage rating of the heater used in the machine.
Burning period : 10 minute/cycle
This is the time required to complete one combustion cycle.
Security: Prevent auto-on
This is a system that prevents the machine from running automatically when the current is cut off and the machine starts running again.
Mounting styles: Wall Mount
These incinerators are fixed to the wall with two screws.
Exhaust: Flexible GI Pipe
The exhaust pipe in the napkin incinerator helps to safely exhaust the gases generated during the combustion process.
Body Construction: MS and SS
Body made of mild steel with epoxy coating and heater base made of stainless steel SS 304.
Thermal Insulation: Ceramic Fiber Blanket
This is the need for thermal insulation in a napkin incinerator. It prevents heat loss, ensures energy efficiency, protects the outer parts from overheating (safety), and maintains the correct combustion temperature.
Main Components for servicing, repair or manufacturing a Napkin Incinerator
Control Circuit Board - PCB
- Start / End each cycle operation
- High power switching- Relay
- Logic & Timing Control
- Manage Automatic Heating
Heating Element / Heater Coil
The heater is the main component responsible for the actual disposal process. Its primary function is to generate intense heat to burn the soiled napkins into sterile ash.
