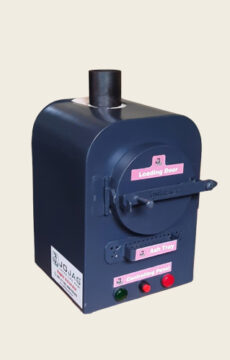

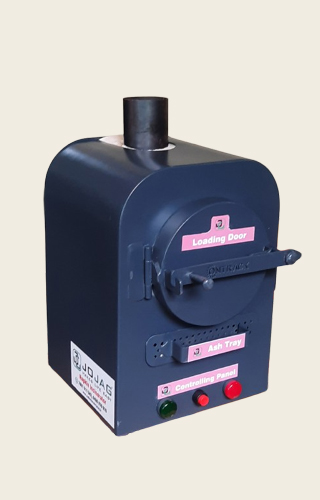

Napkin Incinerator 2 pad/cycle
Model No: JN 102A
Capacity/Cycle: 1-2 pad
Capacity/day: 6 pad
PRICE : Rs 9,400
Product Detail :
| Product | Pad Incinerator |
| Model no | JN 102A |
| Purpose | Domestic |
| Mode | Automatic |
| Capacity/day | 6 pad / day |
| Capacity/cycle | 1-2 pad / cycle |
| Operation | Auto Cut off - Timer |
| Time | 12 minute / cycle |
| Supply | 230v, 50Hz |
| Power | 800w |
| Exhaust | GI Flexible Pipe |
| Type | Wall mount |
| Dimension ( in mm ) | L190 x B185 x H305 |
| Thermal Insulation | Ceramic 25mm |
| Feature | Eco friendly |

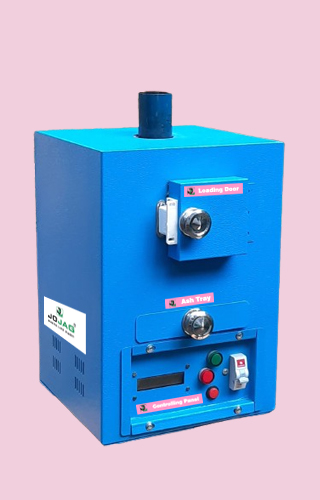

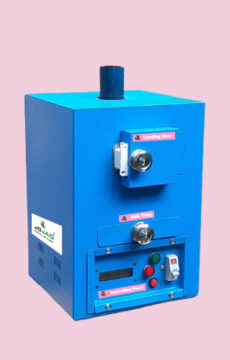

Napkin Incinerator 4 pad/cycle
Model No: JN 102B
Capacity/Cycle: 2-4 pad
Capacity/day: 10 pad
PRICE : Rs 9,850
Product Detail :
| Product | Pad Incinerator |
| Model no | JN 102B |
| Purpose | Domestic |
| Mode | Automatic |
| Capacity/day | 10 pad / day |
| Capacity/cycle | 2-4 pad / cycle |
| Operation | Auto Cut off - Timer |
| Time | 12 minute / cycle |
| Supply | 230v, 50Hz |
| Power | 1000w |
| Exhaust | GI Flexible Pipe |
| Type | Wall mount |
| Dimension ( in mm ) | L210 x B210 x H330 |
| Thermal Insulation | Ceramic 25mm |
| Digital Display | Show Time & Temp |
| Feature | Eco friendly |
OUR PRODUCTS :
Napkin Incinerator models
Detailed Specification
Operation Mode: Automatic
The automatic shut-off system turns off the machine when the burning process is complete.
Capacity:
JN 102A: 1-2 pad/cycle
JN 102B: 2-4 pad/cycle
The number of napkins it can process at once or within a given cycle.
Heater Power:
JN 102A: 800W
JN 102B: 1000W
How much energy is used per cycle, the efficiency of the machine depends on the wattage rating of the heater used in the machine.
Burning period : 12 minute/cycle
This is the time required to complete one combustion cycle.
Security: Prevent auto-on
This is a system that prevents the machine from running automatically when the current is cut off and the machine starts running again.
Mounting styles: Wall Mount
These incinerators are fixed to the wall with two screws.
Exhaust: Flexible GI Pipe
The exhaust pipe in the napkin incinerator helps to safely exhaust the gases generated during the combustion process.
Body Construction: MS
Body made of mild steel with epoxy coating
Thermal Insulation: Ceramic Fiber Blanket
This is the need for thermal insulation in a napkin incinerator. It prevents heat loss, ensures energy efficiency, protects the outer parts from overheating (safety), and maintains the correct combustion temperature.
Main Components for servicing, repair or manufacturing a Napkin Incinerator
Control Circuit Board - PCB
- Start / End each cycle operation
- High power switching- Relay
- Logic & Timing Control
- Manage Automatic Heating
Heating Element / Heater Coil
The heater is the main component responsible for the actual disposal process. Its primary function is to generate intense heat to burn the soiled napkins into sterile ash.

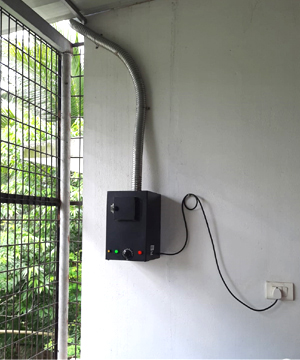

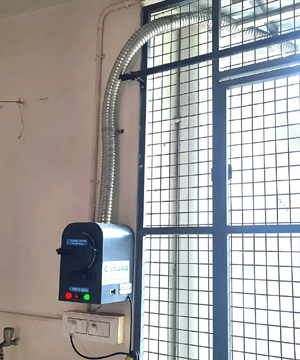

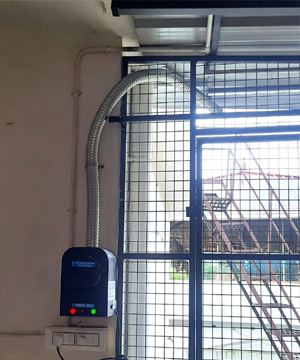

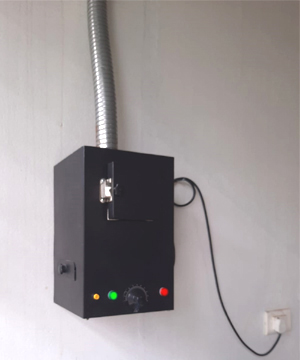

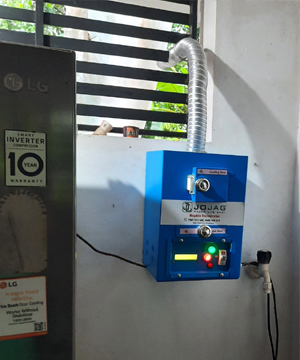

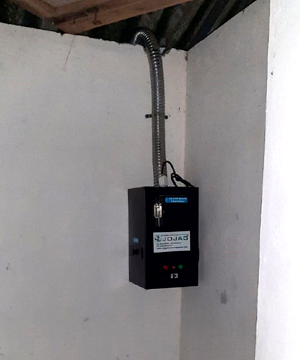

Gallery
