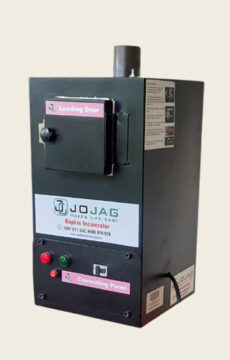

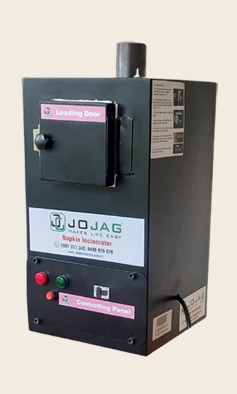

JOJAG Sanitary Pad Incinerator- JN 105A
Model No: JN 105A
Capacity/Cycle: 10-12 pad
Capacity/day: 50 pad
PRICE : Rs 11,850
- 12 Month Warranty
- Free Product Training
- Free Vertual Assistant
- Post-warranty repair
Product Detail :
| Product | Pad Incinerator |
| Model no | JN 105A |
| Purpose | Schools |
| Mode | Automatic |
| Capacity/day | 50 pad / day |
| Capacity/cycle | 10-12 pad / cycle |
| Operation | Auto Cut off - Timer |
| Time | 15 minute / cycle |
| Supply | 230v, 50Hz |
| Power | 1200w |
| Exhaust | GI Flexible Pipe |
| Type | Wall mount |
| Dimension ( in mm ) | L220 x B220 x H350 |
| Thermal Insulation | Ceramic 25mm |
| Feature | Eco friendly |

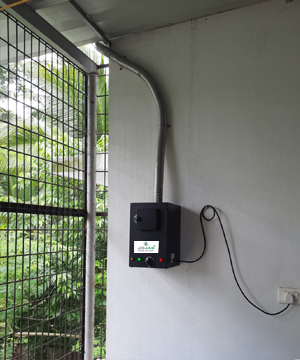

Installed @ Open Terrace :
OUR PRODUCTS :
Detailed Specification
Operation Mode: Automatic
The automatic shut-off system turns off the machine when the burning process is complete.
Capacity: 10-12 pad/cycle
The number of napkins it can process at once or within a given cycle.
Heater Power: 1200 Watt
How much energy is used per cycle, the efficiency of the machine depends on the wattage rating of the heater used in the machine.
Burning period : 15 minute/cycle
This is the time required to complete one combustion cycle.
Security: Prevent auto-on
This is a system that prevents the machine from running automatically when the current is cut off and the machine starts running again.
Mounting styles: Wall Mount
These incinerators are fixed to the wall with two screws.
Exhaust: Flexible GI Pipe
The exhaust pipe in the napkin incinerator helps to safely exhaust the gases generated during the combustion process.
Body Construction: MS and SS
Body made of mild steel with epoxy coating and heater base made of stainless steel SS 304.
Thermal Insulation: Ceramic Fiber Blanket
This is the need for thermal insulation in a napkin incinerator. It prevents heat loss, ensures energy efficiency, protects the outer parts from overheating (safety), and maintains the correct combustion temperature.
